EASYHEAT Air 2 kW | 150-400 kHz Induction Heating System

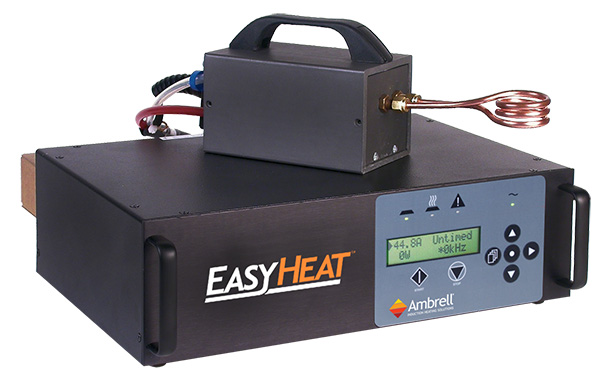

The compact EASYHEAT Air is an air-cooled induction heating system that offers peak power of 2 kW. It is a reliable solution for heating parts with a quick, clean source of heat. With a movable work head that can be located up to 3m (10’) from the power supply, it is ideal for repeatable, non-contact heating of parts.

Important: For applications with output power over 500W, operation must be validated by our Applications Lab.

Equipped to operate over a broad frequency range (150-400 kHz), EASYHEAT is ideal for heating parts of many geometries and compositions with precise power control within 25W resolution.

Avoid time-consuming changeovers with agile tuning for single-cycle and continuous heating operations. One system can supply heating for an array of applications like brazing, soldering, catheter tipping and much more. Flameless, non-contact induction heating minimizes energy waste by focusing energy only on the part and zone to be heated. Select and monitor power levels from the front panel LCD and sealed touch pad. Easily control the length of the heating cycle with a built-in programmable digital timer.

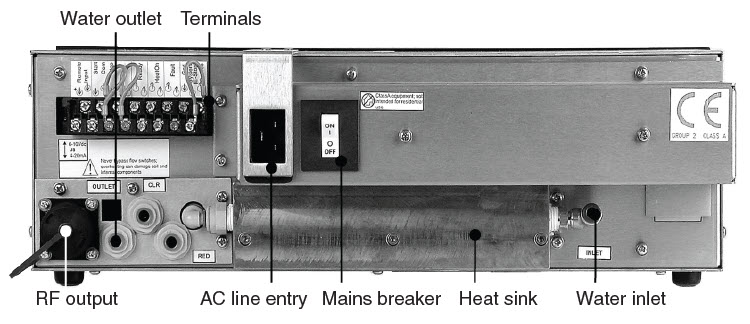

EASYHEAT Rear Panel

EASYHEAT Air is Versatile

♦ Efficient heating of many geometries
♦ Repeatable, reliable heating with agile frequency tuning
♦ Movable workhead; up to 3m (10’)
♦ Remote serial operation or logging (optional)
♦ Five language display suite (EN, FR, IT, DE, ES)
♦ Field-calibration capable

EASYHEAT Air is Easy-to-Use

♦ Self-adjusting for accurate, repeatable results
♦ View set-point, output, frequency and timer
♦ Built-in timer, stop-watch
♦ Push-button RF power control

EASYHEAT Air is Compact and Light

♦ Smallest feature-rich model

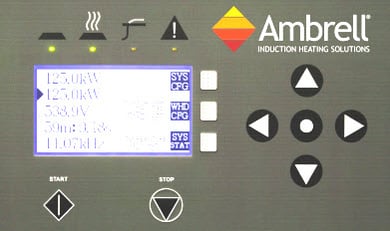

touch panel

EASYHEAT features a front panel programmable controller allowing you to define up to four different heating profiles, each with up to five time/power steps.

Options and Accessories

♦ Heat exchanger or chiller
♦ Optical pyrometer (closed-loop temperature control)
♦ External controller (plc)
♦ Extended work head cable lengths
♦ Footswitch
♦ Serial data interface
♦ Pendant station
♦ Start-up assistance

SPECIFICATION	VALUE	UNITS
RF Terminal Power³	2	kW
AC Line Power	0.8	kVA
AC Line Protection	15	A
Frequency	150-400	kHz
RF Coil Current	100 (typical)	A max
AC Line Voltage	117 or 220	Vac ± 10%, 1Ø
Front Panel Display	2 line x 16 character LCD; displays frequency, power, setpoint, timer and fault descriptions
Display Language Suite¹	Five language display suite (EN, FR, IT, DE, ES)
Serial Communications	Via RS485 terminal mode	Optional
Timer	Built in; 10ms to 10,000 seconds
Heating Controller	4 programmable profiles, 5 steps per profile
RF Rise Time	<5	ms
Tune Time	<5	ms
Compliance	CE & UKCA Marked, 220 models only
Max Ambient Temp	45 (115)	C° (F°)
Unit Weight	10.4 (23)
Dimensions	Rack 483 x 400 x 133 (19 x 15.7 x 5.3)	WxDxH mm (in)
Dimensions	Bench 436 x 398 x 129 (17.2 x 15.7 x 1) 3U	WxDxH mm (in)
WATER COOLING (Sys²)
Max Input Pressure	5.6 (80)	Bar (lb/in2)
Pressure Differential	2.8 - 5.5 (40-80)	Bar (lb/in2)
Max Air Temp	32 (90)	C° (F°)

1) Factory set
2) System includes workhead
3) For applications with output power over 500W, operation must be validated by our Applications Lab.

SPECIFICATION	VALUE	UNITS
RF Terminal Power	2	kW
AC Line Power	0.8	kVA
AC Line Protection¹	15	A
Output Frequency	150-400	kHz
RF Coil Current	100 (typical)	Amax
AC Line Voltage²	117 or 220	Vac
Display	LCD Monochrome, 240w x 128h pixels, 2 line x 16 character LCD; displays frequency, power, setpoint, timer and fault descriptions
Display Language Suite³	EN, FR, IT, DE, ES
Serial Communications	Via RS485 terminal mode	Optional
Process Timer	0.01 - 10000	sec
Heating Controller	4 programmable profiles, 5 steps per profile
RF Rise Time	<5	ms
Tune Time	<5	ms
Compliance⁴	CE & UKCA Marked, 220 models only
Max Ambient Temp	45 (115)	C° (F°)
Weight	32 (70)	kg (lb)
Dimensions	436 x 398 x 129 (17.2 x 15.7 x 5.1)	WxDxH mm (in)
WATER COOLING (Sys)⁵
Flow	7.6 (2.0) + 2.8 (0.75)	l/m (g/m)
Max Input Pressure	5.6 (80)	bar (lb/in2)
Pressure Differential	2.8 - 5.5 (40-80)	bar (lb/in2)
Max Temp	Air: 32 (90)	C° (F°)
1) Factory set 2) System includes workhead
