EASYHEAT 10 kW | 50-150 Induction Heating Systems

Max Power
4.2 kW through 10 kW

Frequency
150 - 400 kHz

Line Voltage
By model

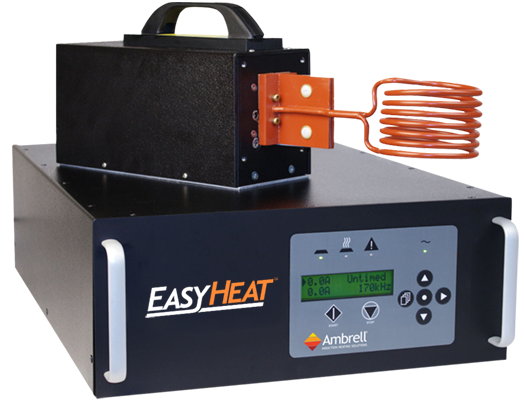

EASYHEAT 4 kW, 6 kW, 9 kW and 10 kW model induction heating systems are reliable, compact solutions for heating parts with a quick, clean source of heat. With a movable workhead that can be located up to 3m (10’) from the power supply, it is ideal for repeatable, non-contact heating of parts.

Equipped to operate over a broad frequency range (150-400 kHz), EASYHEAT is ideal for heating parts of many geometries and compositions with precise power control within 50 W resolution.

Avoid time-consuming changeovers with agile tuning for single-cycle and continuous heating operations. One system can supply deep, bulk heating for brazing and soldering for more shallow, concentrated heating for case-hardening for smaller parts. Flameless, non-contact induction heating minimizes energy waste by focusing energy only on the part and zone to be heated. Select and monitor power levels from the front panel LCD and sealed touch pad. Remote power control is available for employing contact inputs, analog inputs or optional serial data port. Easily control the length of the heating cycle with a built-in programmable digital timer.

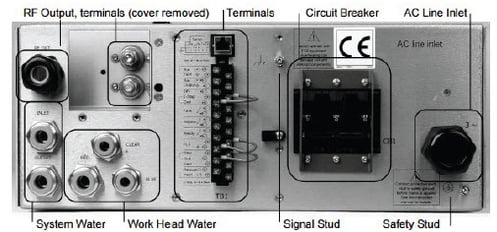

These EASYHEAT models are water-cooled systems, requiring connection to a heat exchanger or other mechanism for dissipating heat. EASYHEAT 10 kW model rear panel

EASYHEAT 10 Group is Versatile

♦ Efficient heating of many geometries
♦ Repeatable, reliable heating with agile frequency tuning
♦ Movable workhead; up to 3m (10’)
♦ Remote serial operation or logging (optional)
♦ Two 3-language display suites
♦ Field-calibration capable

EASYHEAT 10 Group is Easy-to-Use

♦ Self-adjusting for accurate, repeatable results
♦ View set-point, output, frequency and timer
♦ Built-in timer, stop-watch
♦ Push-button RF power control

EASYHEAT 10 Group is Compact and Light

♦ Smallest feature-rich 10 kW model

touch panel

EASYHEAT features a front panel programmable controller allowing you to define up to four different heating profiles, each with up to five time/power steps.

Options and Accessories

♦ Heat exchanger or chiller
♦ Optical pyrometer (closed-loop temperature control)
♦ External controller (plc)
♦ Extended work head cable lengths
♦ Footswitch
♦ Serial data interface
♦ Pendant station
♦ Start-up assistance

SPECIFICATION	VALUE	UNITS
RF Terminal Power	4.2	kW
AC Line Power	5.2	kVA
AC Line Protection¹	[35] 20	A
Output Frequency	150-400	kHz
RF Coil Current	300-750	Amax
AC Line Voltage²	[187-230 or 230-264] 370-440 or 440-520	Vac
Display	LCD Monochrome, 240w x 128h pixels, 2 line x 16 character LCD; displays frequency, power, setpoint, timer and fault descriptions
Display Language Suite³	EN, FR, IT, DE, ES
Serial Communications	Via RS485 terminal mode	Optional
Process Timer	0.01 - 10000	sec
Heating Controller	4 programmable profiles, 5 steps per profile
RF Rise Time	<5	ms
Tune Time	<5	ms
Compliance⁴	CE & UKCA Marked, 220 models only
Max Ambient Temp	45 (115)	C° (F°)
Weight	28 (50)	kg (lb)
Dimensions	432x610x178 (17x24x7)	WxDxH mm (in)
WATER COOLING (Sys)⁵
Flow	3.8 (1.0)	l/m (g/m)
Max Input Pressure	5.6 (80)	bar (lb/in2)
Pressure Differential	2.8 - 5.5 (40-80)	bar (lb/in2)
Max Temp	Water: 35 (95)	C° (F°)
1) AC line protection: Line levels: [230 V] or 440 V 2) AC line voltage: Level determined by model; range factory set per order; field selectable 3) Language suite: Factory set 4) Compliance: Suitable for incorporation into equipment for compliance with Machinery Directive 5) Cooling: Includes workhead Download data sheet for more details
